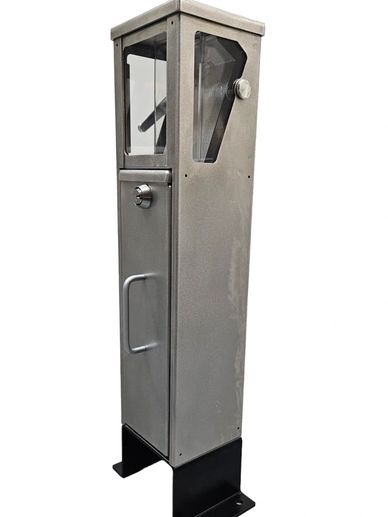

F-2020 Series

F-20L

F-20L

Cabinet Width 6 3/8"

Cabinet Depth 5 3/4"

Cabinet Height 22 1/4"

Cabinet on Hat Stand 26 1/4"

Cabinet Weight 11.5 LBS

Vault Width 4.5"

Vault Depth with Handle 6"

Vault Height 15"

Vault Weight (Empty) 7.5 LBS

Cubic inches 290

Cash Capacity (mixed) $400

Total Unit Weight with

    Hat Stand 23 LBS

Total Unit Weight with

Clamp Bracket 22 LBS

Total Vaults with each unit 2


F-20S

F-20L

Cabinet Width 6 3/8"

Cabinet Depth 5 3/4"

Cabinet Height 16 1/4"

Cabinet on Hat Stand 20 1/4"

Cabinet Weight 10 LBS
Vault Width 4.5"

Vault Depth with Handle 6"

Vault Height 9"

Vault Weight (Empty) 5.5 LBS

Cubic Inches 168

Cash Capacity (mixed) $250

Total Unit Weight with

    Hat Stand 19.5 LBS

Total Unit Weight with

    Clamp Bracket 18.5 LBS

Total Vaults with Each Unit 2

Information

Information

The F-2020 Series Units are ruggedly built using heavy duty Stainless Steel and require little maintenance.

These units have abrasion resistant poly carbonate windows, utilize a three lock system using MEDCO high security locks and keys.

The Fare Dump Handle can be moved to either side of the unit and are indexable.

The F-2020 Series can be mounted directly to the floor, on a Hat Stand, or an existing stanchion pole using a Clamp Bracket.

We have developed an offset Stand to fit in Pro-Master Vans.

These units use front loading, self locking, Vaults with a wide carry handle.

When unlocked, the Vaults have an open top for easy fare removal.

The F-2020 Series accepts bills, coins, tokens, passes and other familiar fare media.

Diamond supplies a one year warranty against all defects.

Fare Boxes

Model NV

Model NV

Model NV

Cabinet Width 5”

Cabinet Depth 5”

Cabinet Height 16”

Cabinet Weight 7 lbs

Vault Width 5”

Vault Depth 4”

Vault Height 8”

Vault Weight 3.4 lbs

 Vault Capacity $125 (approximately-mixed)

Total Unit Weight 15 lbs


The Model NV is one of Diamond Manufacturings Smaller Fare Boxes. This unit is constructed using Heavy Duty stainless steel and aluminum castings. The Model NV uses a two lock, High Security system by Medeco. The clear viewing windows are made of scratch and breakage resistant Lexan. The 12 Volt DC night light allows for easy viewing in dim to dark conditions. This unit accepts the dollar bill, coins, tokens, passes & other similar fare media. The Model NV has an open vault when it is removed from the cabinet. Diamond has designed the Model NV to be mounted to a floor stand. Though it can be mounted to a stanchion using our Universal Bracket. The Model NV is ruggedly built with very little maintenance needed.. Diamond supplies a one year written warranty against all defects

Model XV

Model NV

Model NV

Cabinet Width 6.5”

Cabinet Depth 5.5”

Cabinet Height 16.75”

Cabinet Weight 12.5 lbs

Vault Width 6.39”

Vault Depth 5.28”

Vault Height 6”

Vault Weight 5 lbs

Vault Capacity $200 (approximately-mixed)

Total Unit Weight 17.5 lbs


These units are constructed using Heavy Duty stainless steel and aluminum castings. The Model SV and the Model XV each use a clamp style bracket. The clear viewing windows are made of scratch and breakage resistant Lexan. The 12 Volt DC night light allows for easy viewing in dim to dark conditions. This unit accepts the dollar bill, coins, tokens, passes & other similar fare media. Diamond has designed the Model SV and the Model XV to be mounted to a stanchion or floor stand. The Model SV and the Model XV are rugedly built with very little maintenance needed. Diamond supplies a one year warranty against all defects

Model SV

Model NV

Model SV

Cabinet Width 6.5”

Cabinet Depth 5.5”

Cabinet Height 22.5”

Cabinet Weight 14.5 lbs

Vault Width 6.39”

Vault Depth 5.28”

Vault Height 11”

Vault Weight 7.39 lbs

 Vault Capacity $400 (approximately-mixed)

Total Unit Weight 21.8 lbs


These units are constructed using Heavy Duty stainless steel and aluminum castings. The Model SV and the Model XV each use a clamp style bracket. The clear viewing windows are made of scratch and breakage resistant Lexan. The 12 Volt DC night light allows for easy viewing in dim to dark conditions. This unit accepts the dollar bill, coins, tokens, passes & other similar fare media. Diamond has designed the Model SV and the Model XV to be mounted to a stanchion or floor stand. The Model SV and the Model XV are ruggedly built with very little maintenance needed. Diamond supplies a one year warranty against all defects

Model RV

F-24 Series

Model SV

Cabinet Width 9”

Cabinet Depth 5.5”

Cabinet Height 22.5”

Cabinet Weight 20 lbs

Vault Width 8.875”

Vault Depth 5.28”

Vault Height 11”

Vault Weight 9 lbs

Vault Capacity $800 (approximately-mixed)

Total Unit Weight 29 lbs


The Model RV is the Largest of Diamond Manufacturings Fare Boxes. This unit is constructed using Heavy Duty stainless steel and aluminum castings. The Model RV uses a clamp style bracket. The clear viewing windows are made of scratch and breakage resistant Lexan. The 12 Volt DC night light allows for easy viewing in dim to dark conditions. This unit accepts the dollar bill, coins, tokens, passes & other similar fare media. The Model RV has a bottom, locked lid for extra vault support. Diamond has designed the Model RV to be mounted to a stanchion or floor stand. The Model RV is rugedly built with very little maintenance needed.. As with all Diamond Fare Boxes, the Model RV is carefully inspected through its entire production to give our customers a superior, long lasting Fare Box. Diamond supplies a one year written warranty against all defects

F-1 Series

F-24 Series

F-24 Series

Cabinet Width 7”

Cabinet Depth 10” (Includes handle projection)

Cabinet Height 18”

Cabinet Weight 17.5 lbs

Vault Width 5”

Vault Depth 8” (included handle projection)

Vault Height 9.5”

Vault Weight 8.5 lbs

Vault Capacity $300 (approximately-mixed)

Total Unit Weight 26 lbs


Model F-1 Stand Features

Stand Width 8.5”

Stand Depth 9”

Stand Height 14.25”

Stand Weight 21 lbs

Material .177 cold rolled steel

 Finish Black Powder Coated


This unit can be used as a standard Manual Fare Box with a dump handle that can be mounted on on either the left or right side. Or it can be mounted away from the driver with a remote button dump option. Heavy Duty, Electropolished, 16 gage Stainless Steel Construction. MR 10,000 Scratch & Breakage resistant windows. High Security Medeco locks & keys. LED Cool White Lighting. Accepts the dollar bill, coins, tokens, passes & other similar fare media. Easy front loading vault with an automatic locking feature when removed. Easy access vault door to remove fares. 12 volt DC power. Standard floor mount design. Stand option with 1” height adjustment increments

F-24 Series

F-24 Series

F-24 Series

Cabinet Width 7”

Cabinet Depth 10” (Includes handle projection)

Cabinet Height 37 5/8”

Cabinet Weight

Vault Width 5”

Vault Depth 8” (included handle projection)

Vault Height 24"

Vault Weight

Vault Capacity  in excess of $1,500

Total Unit Weight


Model F-24 Stand Features

Stand Base Plate Width 13.375"

Stand Base Plate Depth 13.375"

Stand Height 5 3/8"

Stand Weight

Material .177 cold rolled steel

Finish Black Powder Coated


This unit can be used as a standard Manual Fare Box with a dump handle that can be mounted on on either the left or right side. Or it can be mounted away from the driver with a remote button dump option. Heavy Duty, Electropolished, 16 gage Stainless Steel Construction. MR 10,000 Scratch & Breakage resistant windows. High Security Medeco locks & keys. LED Cool White Lighting. Accepts the dollar bill, coins, tokens, passes & other similar fare media. Easy front loading vault with an automatic locking feature when removed. Easy access vault door to remove fares. 12 volt DC power. Standard floor mount design. Stand option with 1” height adjustment increments

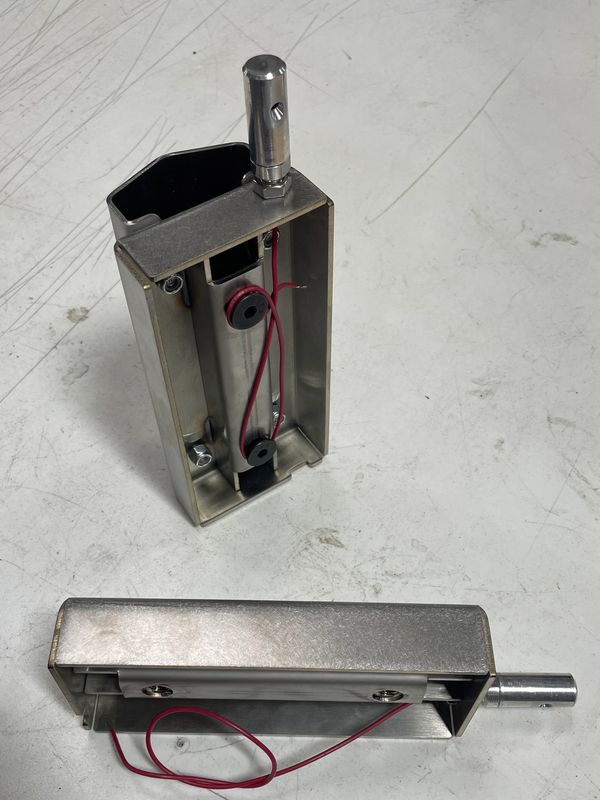

Photo Gallery

    Donation Boxes

    5X5X5 Donation Box

    5X5X5 Donation Box

    5X5X5 Donation Box

    8X6X4 Donation Box

    5X5X5 Donation Box

    5X5X5 Donation Box

    8X8X8 Donation Box

    5X5X5 Donation Box

    Diamond Manufacturings offers 3 different sizes of Donation Boxes. Donation Boxes are constructed with Carbon Steel. All Donation Boxes are Wet-Painted Black. Each Donation Box comes standard with a top lock for moderate security. They accept the dollar bill, coins, tokens, passes & other similar fare media. Each Donation Box has a bracket to be permanently mouned to the vehicle. Diamond, also, offers additional Bracket Systems that allows the Donation Box to be locked to the vehicle and removed easily. Donation Boxes are an inexpensive yet long lasting alternative for Fare Collection. Diamond supplies a one year warranty against all defects

    Donation Box standard Bracket

    Donation Box standard Bracket

    Donation Box 3-piece Bracket

    Donation Box standard Bracket

    Donation Box Stand

    Donation Box Stand

    Donation Box Stand

    Photo Gallery

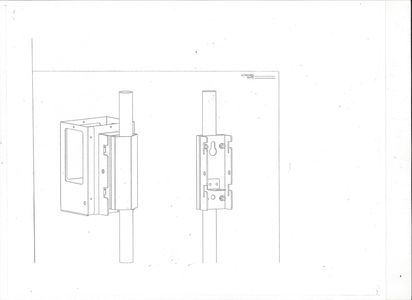

      Fare Box Schematics

      Model NV (jpg)

      Download

      Model XV (jpg)

      Download

      Model SV (jpg)

      Download

      Model RV (jpg)

      Download

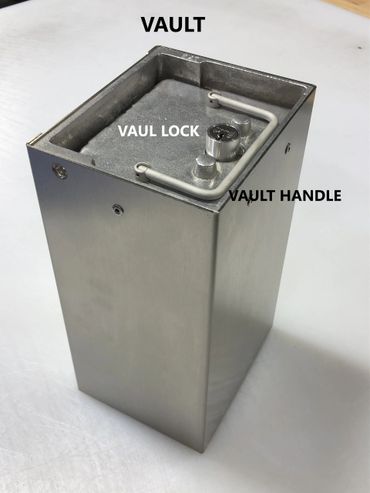

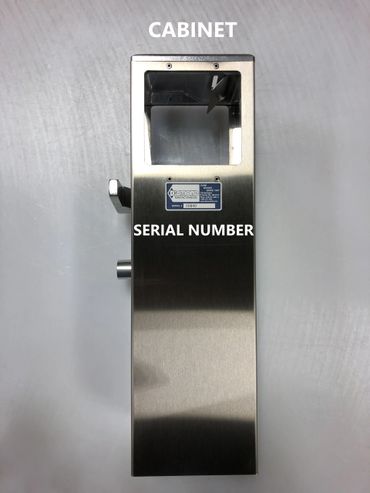

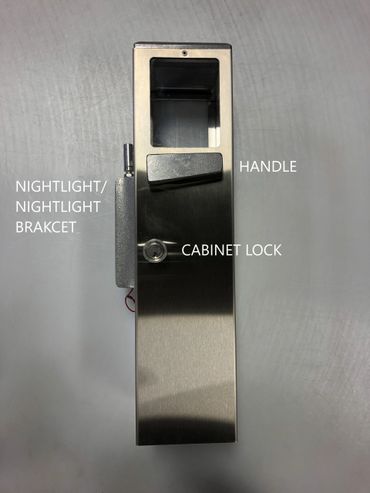

      BASIC FARE BOX TERMS

      Brackets

      New Adjustable Bracket

      NV Clamp Bracket

      Fare Box Stands

      Light Duty Stand

      D-10 & D-10/24 Heavy Duty Stand

      Donation Box & Model NV Stand

      Donation Box & Model NV Stand

      D-10 & D-10/24 Heavy Duty Stand

      Donation Box & Model NV Stand

      D-10 & D-10/24 Heavy Duty Stand

      D-10 & D-10/24 Heavy Duty Stand

      D-10 & D-10/24 Heavy Duty Stand

      The D-10 Heavy Duty Stand is 31" tall and will put the top of the Fare Box at 38" from the floor.


      The D-10/24 Stand is used only with Model XV Fare Box. This 24" stand will put the top of the Fare Box at 31" from the floor.


      Lock Replacement

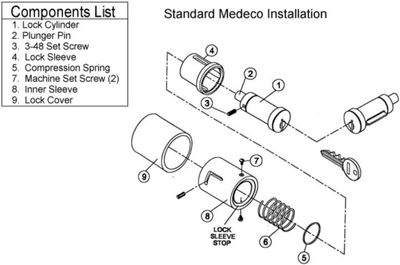

      1. With a soft flame from a propane or oxy-acetylene torch, carefully heat the top of the exterior lock cover.  Using pliers, gently twist the cover loose and slide it off  the inner sleeve.  The cover is held in place with a retaining compound that  deactivates when heated.
      2. Clean excess compound from sleeve and cover with emery cloth or sand paper.
      3. Remove the 3-48 set screw from the L shaped slot with a hex key.
      4. Remove the two machine screws from the top and bottom of the sleeve.
      5. Remove lock mechanism from sleeve and install new lock according to diagram  reversing above procedures.
      6. To reinstall the 3-48 set screw, insert key in lock and turn right 1/8” turn.  Pull  back nylon washer with awl or small punch to expose the threaded hole in the  lock cylinder.
      7. The lock cover may be retained with retaining compound or plumbers solder.

      Note: For round units, first secure handle from covering the lock by using wire or string to hold it back or inserting a small block inside cabinet at inspection plate.

      Warranty

      Diamond Manufacturing, Inc. warrenties all DIamond fare box cabinets and vaults for a period of one year from the date of shipment.


      Diamond Manufacturing, Inc. agrees to furnish replacement parts. These parts will be shipped and invoiced with full credit being issued upon receipt in North Kansas City of defective parts. Labor cost in the customers shop or sub-contracted outside labor is not covered.


      Diamond Manufacturing, Inc. will, in our plant perform and repair and supply the parts, including labor at no charge to the customer. All freight charges inbound and outbound are paid by the customer.


      This warranty is null and void in cases of vandalism or deliberate damage, or misuse of the fare box.
